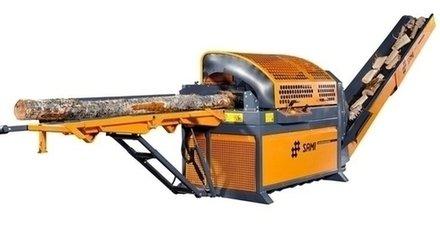

Splitting force 11 t
Electric version
Chainsaw length 44 cm
The 11 kW electric motor is equipped with a soft starter. Therefore, starting the motor does not cause any intense power surge.
You will find the technical data at the bottom of this page.
Description of the reference markings
S Floor type
110/185 Splitting force, 11 or 18,5 t
T Tractor operated
E Electric motor operated
C Chainsaw
440 Blade range in mm
Ask for more information
SAMI Autochopper brochure| Saw’s form of use | Chain saw |
| Saw’s blade size mm | Harvester 440 |
| Maximum blade range | 440 mm |
| Method of application | Electric |
| Driving force | 11 kW |
| Operating voltage | 12 V |
| Transmission of the saw | Hydraulic |
| Minimum/maximum log length | 200-500 mm |
| Splitting force | 11 t |
| Cycle time | 4-8 s |
| Control system | Microprocessor |
| Mechanical adjustments | No |
| Automatic drive | Yes |
| Semi-automatic use with joystick | Yes |
| Manual use with joystick | Yes |
| Uninterrupted Nonstop drive | Yes |
| Log feeding at feed belt | Yes |
| Feed mat reverse | Yes |
| Automatic log ram and diameter measurement | Yes |
| Automatic blade disconnection | Yes |
| Automatic splitting wedge alignment at every saw cut | Yes |
| Automatic cut in half of logs less than 100 mm | Yes |
| Optimization of log ends, 3 alternatives | Yes |
| Telescopic fully hydraulic discharge conveyor | Option |
| Litter separator at the end of the discharge conveyor | Option |
| Sideways rotatable discharge conveyor | Option |
| Splitting wedge 2/4 | Standard |
| Splitting wedge 2/6 | Option |
| Splitting wedge 2/8 | Option |
| Splitting wedge 2/12 | Option |
| Hydraulic log jack / working and transport position | Option |
| Spotlights | Option |
| Hard metal chain | Option |
| Hydraulic sideways rotation of the discharge conveyor | Option |
| Oil cooler | Option |
| Honeycomb-structured oil tank with opt. couplings, capacity | 115 L |
| Hydraulic spool valve for an accessory | Yes |
| Adapter for the sawdust extractor | Yes |
| Fitted tarpaulin | Yes |
| Information display and log: | Yes |
| • optimization choice • oil temperature • adjustment of the chain’s lubrication • operating hour meter • volume of cut logs m3 • maintenance notification (oil and filter change) • error code • interface for options • option for software additions |
|
| Measures in transport position WxDxH | 263x149x250 cm |
| Measures in working position WxDxH | 855x149x240 cm |
| Weight | 1480 kg |
